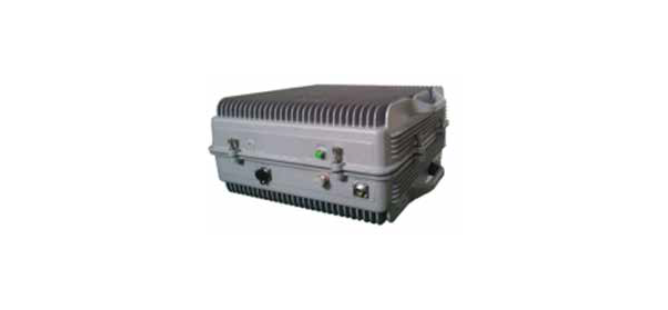

Function:
Receives RF signals from the Master Unit via optical fibre and transmits them to the antennas using coaxial cable, and vice versa for uplink.
Technical Specifications:
• Frequency: 900/1800/2100/2600/3700-3900MHz
• Gain: 50±3dB
• Max Output Power: 20/40W
• VSWR: ≤1.5
• Impedance: 50Ω
• Application: Active DAS

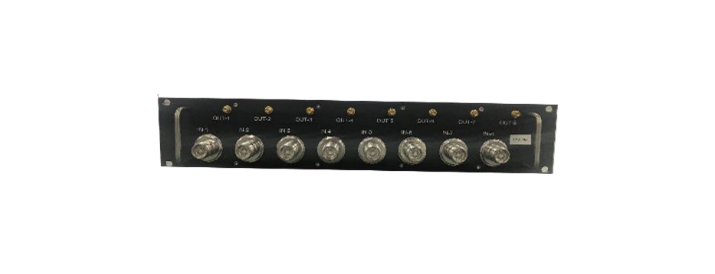

Function:
Connects the operator’s BTS to the DAS system, supporting the main interface between the network and the DAS.
Technical Specifications:
• Supported Systems: GSM / WCDMA / LTE / 5G NR
• Frequency Range: 700 MHz – 4200 MHz
• Architecture: Modular, hot-swappable design
• Operator Capacity: Multi-operator support
• MIMO: Compatible
• Expandability: Easy upgrade and reconfiguration
• Application: IBS base station integration
• Inputs: 8 Inputs
• Outputs: 8 Outputs
• Application: Active DAS

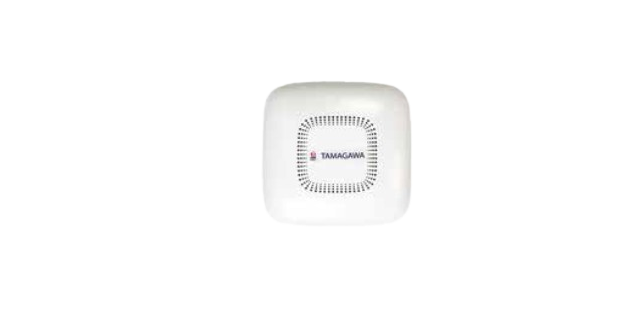

Function:
Integrates the radio and antenna into a single device to directly transmit and receive RF signals within the coverage area.
Technical Specifications:
Supported Systems: GSM / WCDMA / LTE / 5G NR
Frequency Range: 700 MHz – 3900 MHz
Bands: up to 8 Bands
Operator Capacity: Multi-operator support
MIMO: Compatible
256 QAM
Low Power Consumption
Application: Active DAS

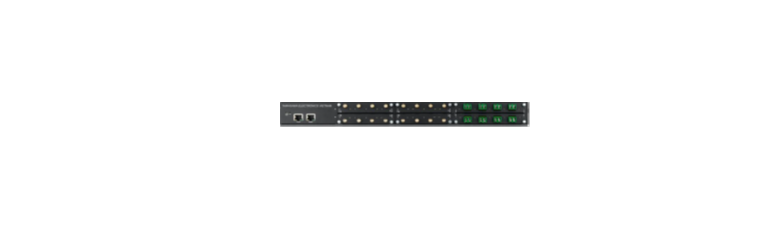

Function:
Processes and manages RF signal conversion, amplification, and overall system control within the DAS.
Technical Specifications:
• Supported Systems: GSM / WCDMA / LTE / 5G NR
• Frequency Range: 700 MHz – 3900 MHz
• Capacity: up to 128 BRU
• Operator Capacity: Multi-operator support
• MIMO: Compatible
• Low Power Consumption
• Application: Active DAS

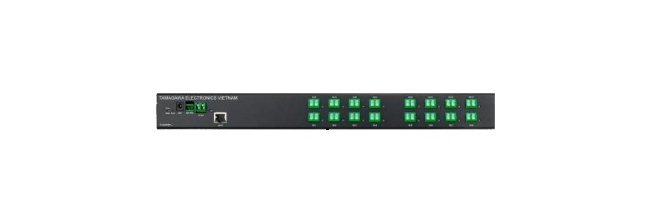

Function:
Expands system coverage or capacity by adding additional signal distribution paths or ports.
Technical Specifications:
• Supported Systems: GSM / WCDMA / LTE / 5G NR
• Frequency Range: 700 MHz – 3900 MHz
• Ports: 16 Ports
• 2 cores and SM fibre
• MIMO: Compatible
• Low Power Consumption
• Application: Active DAS

Function:
High-power active device with four RF output channels, supporting multi-band or MIMO configurations.
Technical Specifications:
Supported Systems: GSM / WCDMA / LTE / 5G NR
Frequency Range: 700 MHz – 3900 MHz
VSWR: ≤1.5
Operator Capacity: Multi-operator support
Impedance: 50Ω
Gain: 43±3dB
Application: High-power Active DAS

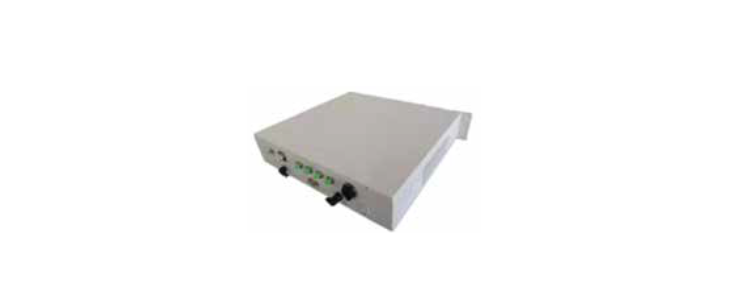

Function:
High-power central unit that manages multiple remote units while controlling signal distribution and system monitoring.
Technical Specifications:
Supported Systems: GSM / WCDMA / LTE / 5G NR
Frequency Range: 700 MHz – 3900 MHz
VSWR: ≤1.5
Operator Capacity: Multi-operator support
Impedance: 50Ω
Gain: 43±3dB
Application: High-power Active DAS
